DIN rail mounted fiber optic box DIN-FA

Product specifications

Model: DIN-FA
Dimension: 130x140x35mm
Material: Aluminum alloy
Max. capacity:  24 fibers
Adapter port: 12 SC simplex, 6 LC quad, 6 SC duplex, 6 SC simplex
Application: indoor DIN rail mounted

Product details

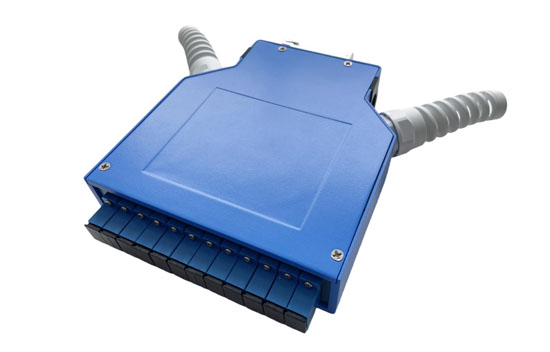

DIN-FA is DIN rail mounted fiber optic box for fiber connection, distribution and protection.

Features:
Aluminum alloy material, sturdy and durable
Box, cover, splice tray are respectively made of metal materials poured in, Integrated molding

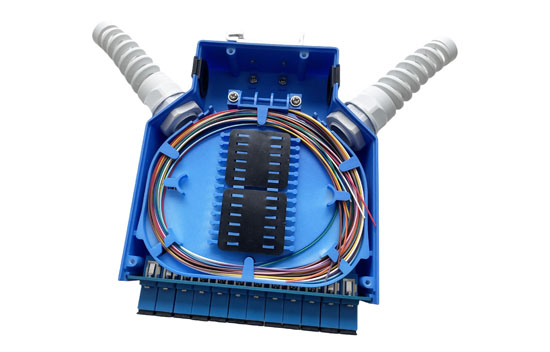

Metal splice tray, 12 slots, each slot 2 fibers, max. 24 fibers
Electrostatic powder coating, different color optional
Metal adapter plate, SC, LC, ST, FC ... different adapter port
4 cable ports, with 2 anti-bending cable gland, cable entry without cutting
