24-48cores DIN fiber optic terminal box DIN-07-A

Product specifications

Model: DIN-07-A
Dimension: 137.5x141.4x62.4mm
Material: Aluminum
Max. capacity:  24-48 fibers
Adapter port: 12 SC duplex
Application: indoor DIN rail mounted

Product details

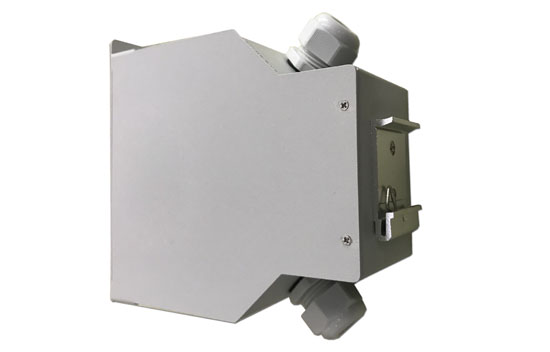

DIN-07-A is a DIN rail mounted fiber optic terminal box that used for fiber connection and distribution. It is made of aluminum, inside splice holder for fiber fusion.

Features:
Reasonable design, compact structure
Aluminum box, light weight
Electrostatic powder painting, grey or black color
4 Entries (2 equipped with PG16 cable glands, 2 empty), Up to 12 mm cable
4 splice module,each up to 12 sleeves for a total of 48 sleeves
1 Aluminum clip with 3 positioning options (right, left or back side)

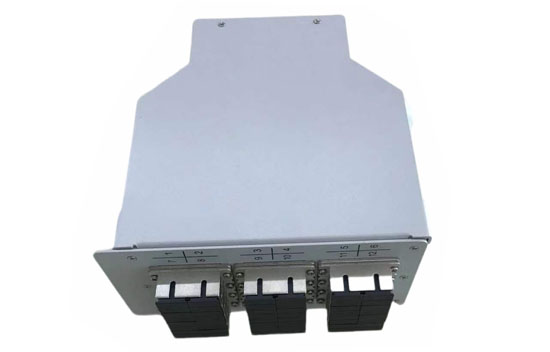

12pcs SC duplex adapter port; other adapter port available
DIN rail mounted application
