19inch 2U rack mounted 288cores MPO box HODF-RS288-2U

Product specifications

Model:  HODF-RS288-2U
Dimension(mm): 482x493.2x87.6
Material: Cold roll steel
Max. capacity: 288 fibers
With 6pcs sliding trays, load 24pcs MPO cassettes HD-08
MPO cassette HD-08 can load 1pc MPT/MTP adapters & 3pcs LC quad or 3pcs SC duplex adapters
Color: Grey white or black

Sliding type, 19inch rack mounted application


Product details

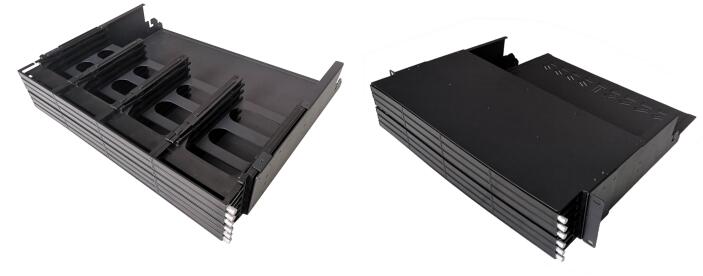

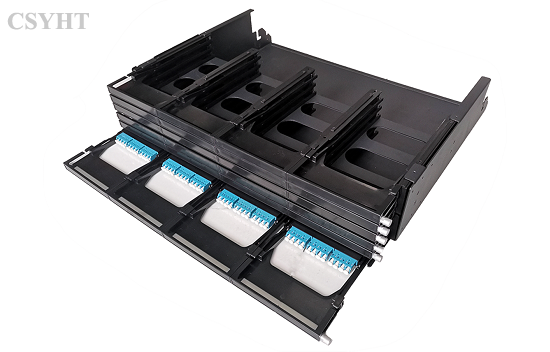

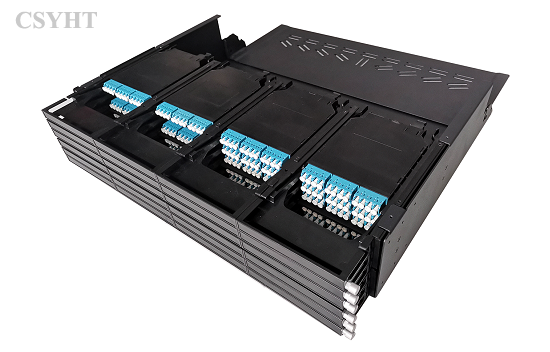

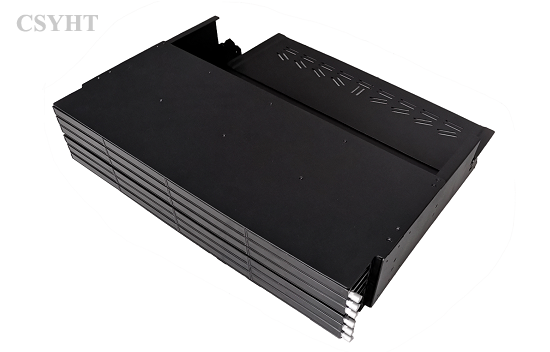

HODF-RS288-2U is a high density fiber optic patch panel that made by high quality cold roll steel material, the surface is with electrostatic powder spraying. It is sliding type 2U height for 19inch rack mounted application. It has 6pcs plastic sliding trays, each sliding tray is with 4pcs MPO cassettes. It can load 24pcs MPO cassettes HD-08 for max. 288 fiber connection and distribution. There are cable management plate with fixing holes at back side of patch panel.
