12fo MPO box HD-08

Product specifications

Model: HD-08
Dimension(mm): 94x123x9.4
Material: ABS+PC plastic
Adapter port: 3pcs LC quad (no flange) or SC duplex without flange + 1pc MPO
Max. capacity: 12 fibers
Color:  black
Application: used in HODF-RS144-1U, HODF-RS288-2U, HODF-RS432-3U, HODF-RS576-4U

Product details

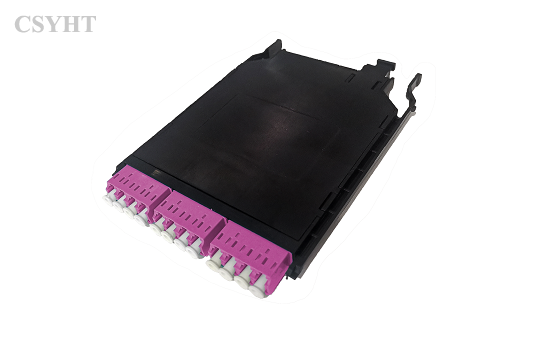

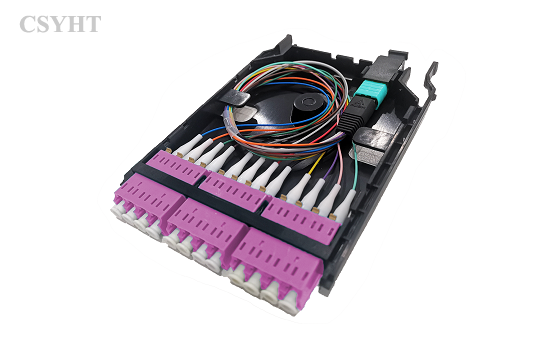

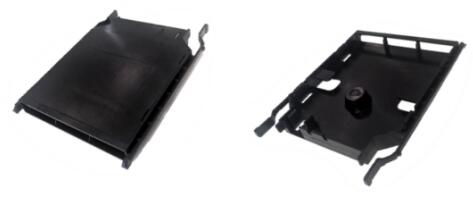

HD-08 is an ABS+PC plastic MPO box consists of box cassette and cover. It can load 1pc MTP/MPO adapter and 3pcs LC quad (or SC duplex) adapters without flange. It has fixing clip that suitable for installing in matched sliding fiber optic patch panel.

There are push type operating handles at both side of MPO box. It is easy to install and disassemble.
