24 fibers MPO box HD-07
Product specifications
Model: HD-07
Dimension(mm): 102x137x29.5
Material: ABS plastic
Adapter port: 12pcs LC duplex (no flange) or SC simplex without flange + 2pcs MPO
Max. capacity: 24 fibers
Color: black
Application: used in HODF-RS1U, HODF-RS2U, HODF-RS3U, HODF-RS4U, HODF-RF1U, HODF-RF3U
Product details

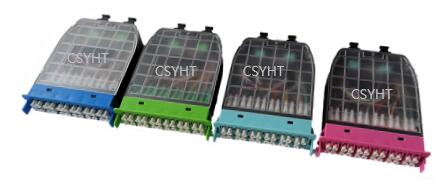

HD-07 is a ABS MPO box consists of box cassette, cover and adapter plate.

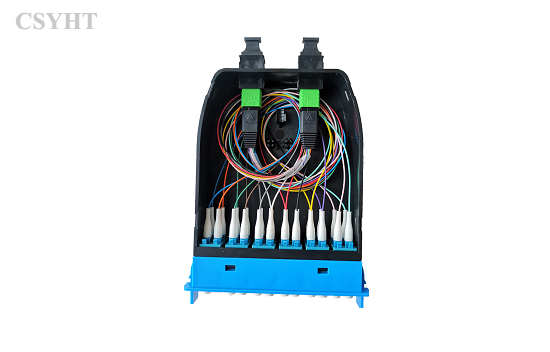

It can load 2pcs MTP/MPO adapter and 12pcs LC duplex (or SC simplex) adapters without flange. It also can load 1pc PG9 cable gland, 2pcs splice modules OS-16 inside for fiber splicing.

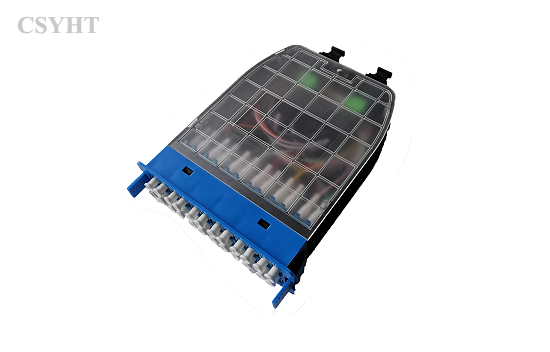

It has translucent cover, convenient for fiber observation. It is max. 24 fibers connection and distribution.
