384fo 4U 19inch high density MPO rack HODF-RS4U
Product specifications
Model: HODF-RS4U
Dimension(mm): 482x353x175.5
Material: Cold roll steel
Max. capacity: 384 fibers
With 16pcs MPO cassettes HD-07
MPO cassette HD-07 can load 2pcs MPT/MTP adapters & 12pcs LC duplex or 12pcs SC simplex adapters
Color: Grey white or black
Sliding type, 19inch rack mounted application
Product details

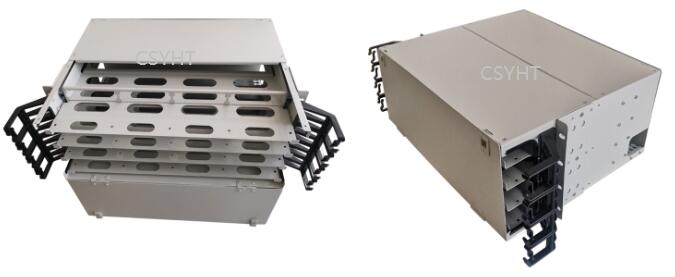

HODF-RS4U is a high density fiber optic patch panel that made by high quality cold roll steel material, the surface is with electrostatic powder spraying.

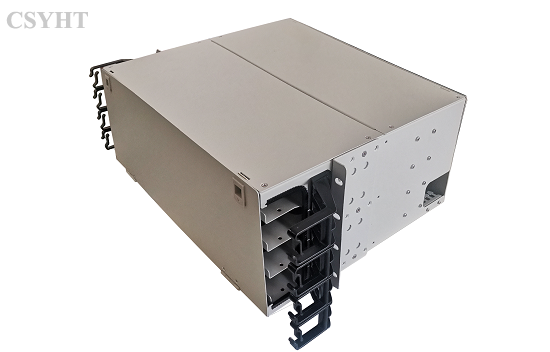

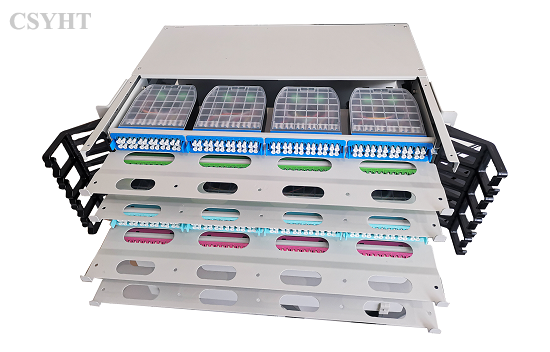

It is sliding type 4U height for 19inch rack mounted application. It has 4 sliding trays, each sliding tray is with 4 MPO cassettes. It load 16pcs MPO cassettes HD-07 for max. 384 fibers connection and distribution. There are cable fixing kit at back side of patch panel and with cable management rings at front side of patch panel. It has front and rear metal doors.
