3U height 288 fibers MPO chassis HODF-RS3U

Product specifications

Model:  HODF-RS3U
Dimension(mm): 482x353x131.5
Material: Cold roll steel
Max. capacity: 288 fibers
With 12pcs MPO cassettes HD-07
MPO cassette HD-07 can load 2pcs MPT/MTP adapters & 12pcs LC duplex or 12pcs SC simplex adapters
Color: Grey white or black
Sliding type, 19inch rack mounted application

Product details

HODF-RS3U is a high density fiber optic patch panel that made by high quality cold roll steel material, the surface is with electrostatic powder spraying.

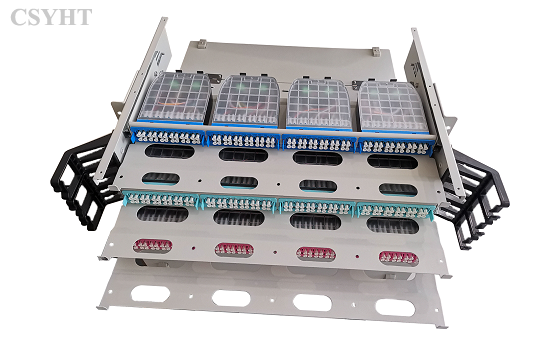

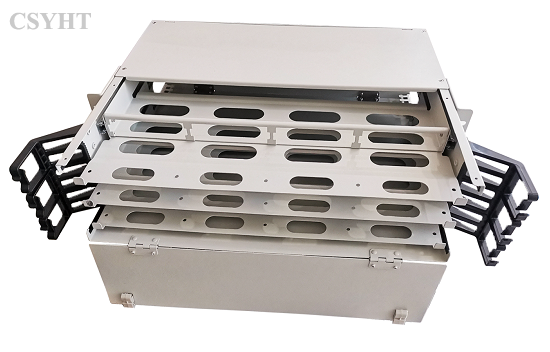

It is sliding type 3U height for 19inch rack mounted application. It has 3 sliding trays, each sliding tray is with 4 MPO cassettes. It load 12pcs MPO cassettes HD-07 for max. 288 fibers connection and distribution. There are cable fixing kit at back side of patch panel and with cable management rings at front side of patch panel. It has front and rear metal doors.
