2U slidable MPO fiber optic patch panel HODF-RS2U

Product specifications

Model:  HODF-RS2U
Dimension(mm): 482x353x87.5
Material: Cold roll steel
Max. capacity: 192 fibers
With 8pcs MPO cassettes HD-07
MPO cassette HD-07 can load 2pcs MPT/MTP adapters & 12pcs LC duplex or 12pcs SC simplex adapters
Color: Grey white or black
Sliding type, 19inch rack mounted application

Product details

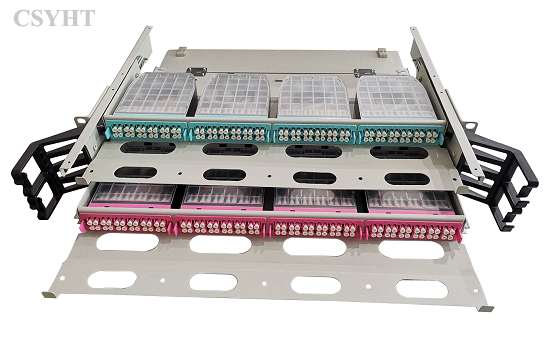

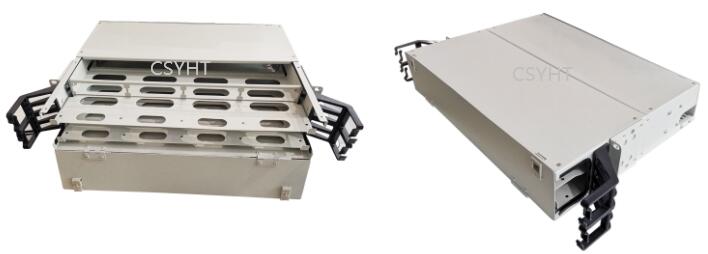

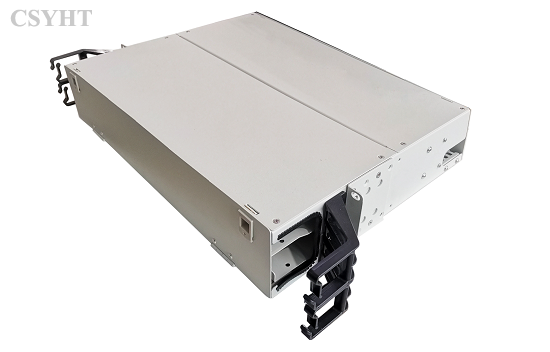

HODF-RS2U is a high density fiber optic patch panel that made by high quality cold roll steel material, the surface is with electrostatic powder spraying. It is sliding type 2U height for 19inch rack mounted application.

It has 2 sliding trays, each sliding tray is with 4 MPO cassettes. It can load 8pcs MPO cassettes HD-07 for max. 192 fibers connection and distribution. There are cable fixing kit at back side of patch panel and with cable management rings at front side of patch panel. It has front and rear metal doors.
