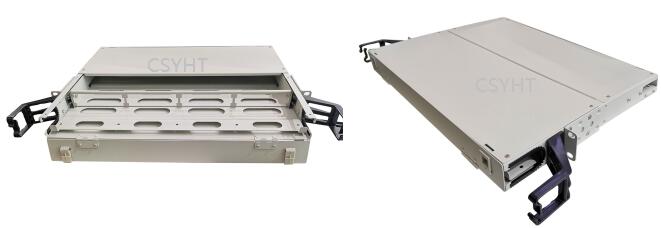

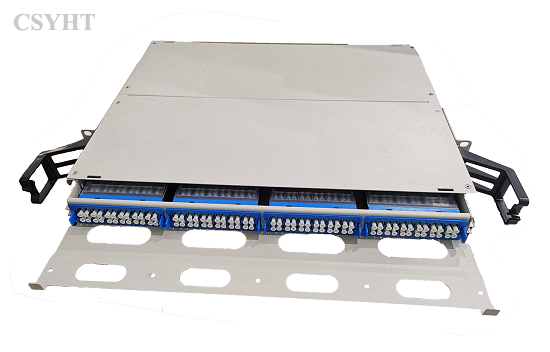

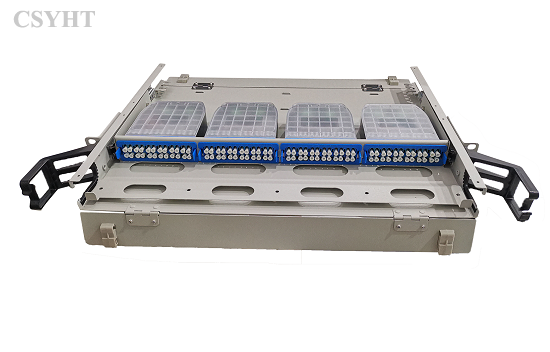

96fo 1U drawer type MPO fiber optic patch panel HODF-RS1U
Product specifications
Model: HODF-RS1U
Dimension(mm): 482x353x43.5
Material: Cold roll steel
Max. capacity: 96 fibers
With 4pcs MPO cassettes HD-07
MPO cassette HD-07 can load 2pcs MPT/MTP adapters & 12pcs LC duplex or 12pcs SC simplex adapters
Color: Grey white or black
Sliding type, 19inch rack mounted application
Product details
HODF-RS1U is a high density fiber optic patch panel that made by high quality cold roll steel material, the surface is with electrostatic powder spraying.
It is sliding type 1U height for 19inch rack mounted application. It can 4pcs MPO cassettes HD-07 for max. 96 fiber connection and distribution. There are cable fixing kit at back side of patch panel and with cable management rings at front side of patch panel. It has front and rear metal doors.
