96cores High density MPO fiber optic patch panel HODF-RF1U
Product specifications
Model: HODF-RF1U
Dimension(mm): 482x220x43.5
Material: Cold roll steel
Max. capacity: 96 fibers
With 4pcs MPO cassettes HD-07
MPO cassette HD-07 can load 2pcs MPT/MTP adapters & 12pcs LC duplex or 12pcs SC simplex adapters
Color: Grey white or black
Fixed type, 19inch rack mounted application
Product details

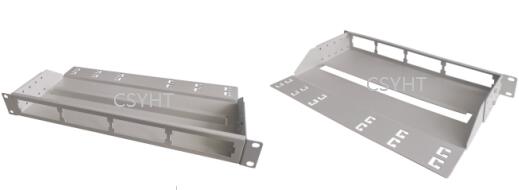

HODF-RF1U is a high density fiber optic patch panel that made by high quality cold roll steel material, the surface is with electrostatic powder spraying.

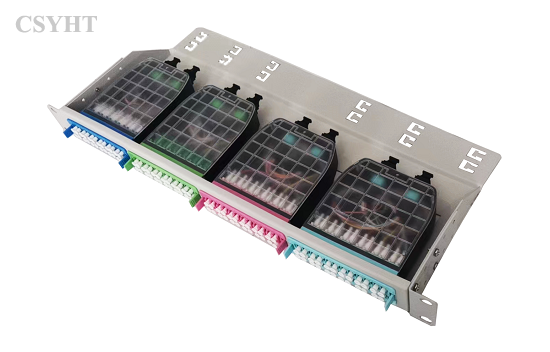

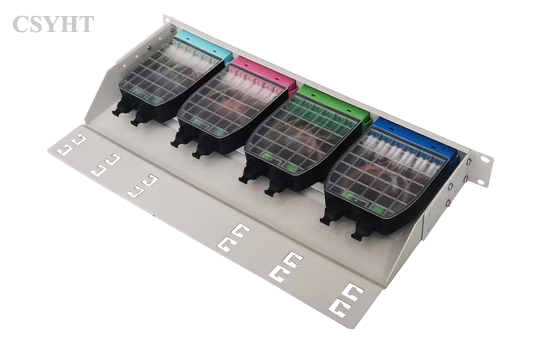

It is fixed type 1U height for 19inch rack mounted application. It can 4pcs MPO cassettes HD-07 for max. 96 fiber connection and distribution.
There are cable management holes at back side of patch panel.
