144 fiber FTTH box BP046
Product specifications
Model: BP046
(Internal model: OTB-P046)

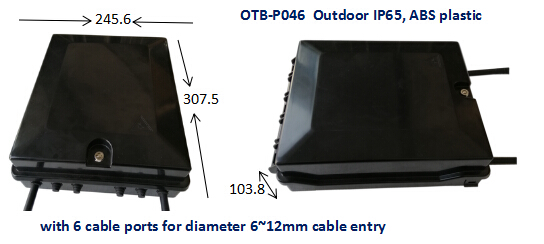

Dimension(mm): 245.6x307.5x103.8mm
Material: ABS + UV plastic
Capacity: 144 fibers
Splice tray qty: 6pcs OST-035 splice trays
Color: black
Cable port: 6 entry port 6-12mm
support cable entry without cutting
Application: IP65, outdoor wall mounted or pole mounted
Product details

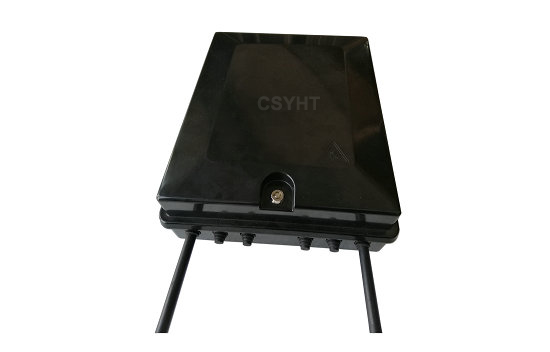

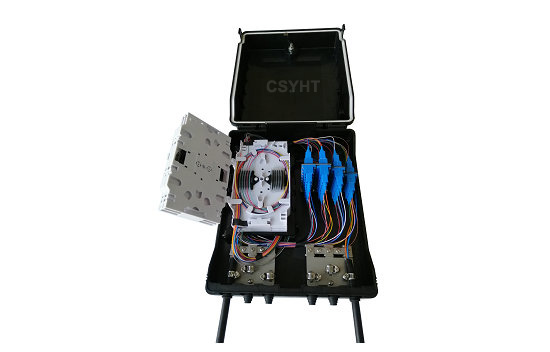

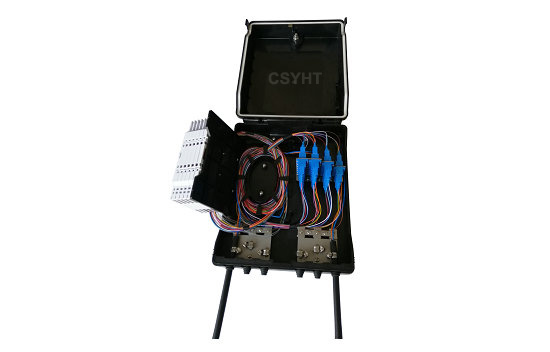

OTB-P046 is a plastic fiber optic terminal box for outdoor wall mounted or pole mounted application. It can load 24pcs SC simplex adapters and has 6pcs splice trays for max. 144 fiber connection and distribution.
Specification:
| Model | Size | Material | Cable port | Adapter port | Capacity | Application |
| OTB-P046 | 245.6x307.5x103.8mm | ABS+UV | 6 ports diameter 6 to 12mm | 24 SC simplex | Max. 144 fibers | Outdoor wall mounted or pole mounted |
Features:
ABS plastic material
Mechanical sealing structure
Waterproof and dustproof IP65 for outdoor using

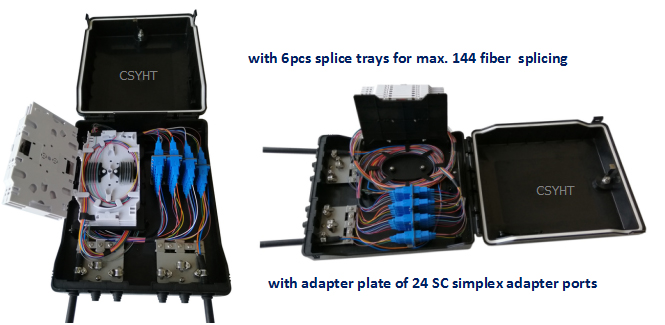

Can load 6pcs splice tray OST-035 for max. 144 fiber splicing, each tray can be 24 fibers
With 6 ports that support cable entry without cutting.
With 24 SC simplex adapter ports for fiber distribution. LC, FC, ST ... other adapter port can be done as request
Standard accessories:
| Item | Name | Specification | Qty |
| 1 |
Heat shrinkable protection sleeve |
45x2.6x1.2mm |
As per using capacity |
| 2 |
Cable tie |
3x120mm, white |
6pcs |
| 3 |
Plastic expansion screw |
6mm diameter, white |
4pcs |
| 4 |
Countersunk head tapping screw |
C type 4*30, metal |
4pcs |
| 5 |
Round head tapping screw |
C type 2*6, metal |
48pcs |
Optional accessories:
| Name | Specification | Qty |
|
Pole mounted stainless tape |
12x620mm |
2pcs |
