IP68 Dome Fiber Optic Splice Closure CV027

Product specifications

Model:  CV027
Dimension(mm):  Φ304.2x502mm
Material: PP plastic
Max. capacity:  288 fibers
Max. qty of splice tray: 24 pcs
Max. capacity of splice tray: 12 fibers

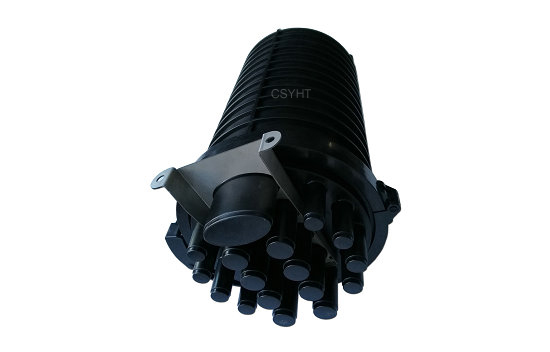

Cable port:  4 round port Φ18mm; 4 round port Φ20mm, 8 round port Φ26mm, 1 oval cable port support cable entry without cutting.
Heat shrinkable sealing structure
IP standard: IP68
Outdoor aerial hanged, pole mounted, wall mounted, direct buried, duct etc.

Product details

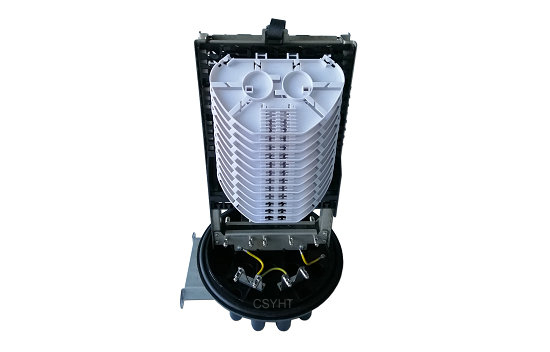

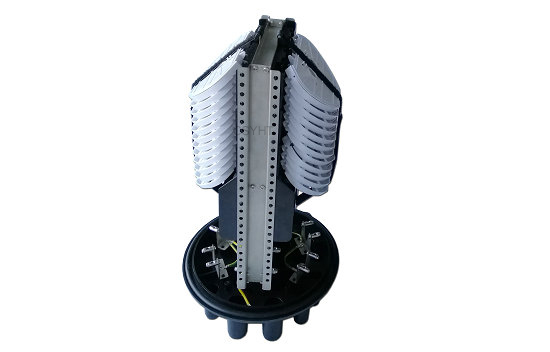

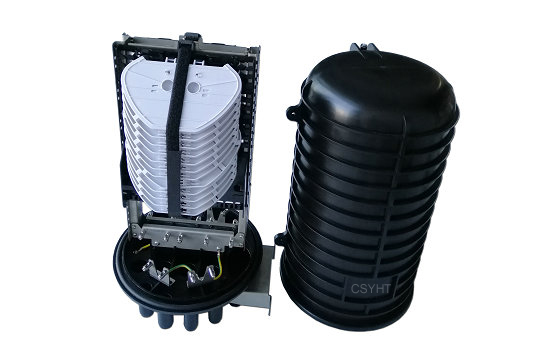

CV027 is a big dome type fiber optic splice closure. It has 1 oval cable port support cable entry without cutting and 16 round cable ports for cable entry and exit. There are 24pcs fiber optic splice tray OST-063 for max. 288 fiber splicing and junction. This closure can be used in temperature -35℃~70℃ environment, cold and heat resistant, electrical insulation, chemical corrosion resistance.
