FAP BP040
Product specifications
Model: BP040
(Internal model: OTB-P040)
Dimension(mm): 303.15X198.4X72
Material: ABS plastic
Capacity: 12-24 fibers
Splice tray qty: 1 pc OST-050
Color: black
Cable port: 4 entry port 6-8mm & 8 drop cable port 3x2mm
support cable entry without cutting
Application: IP65, outdoor aerial hanged
Product details

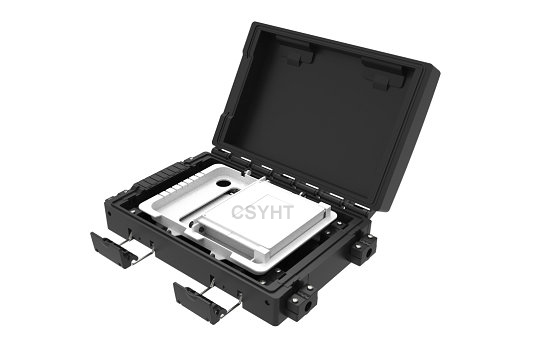

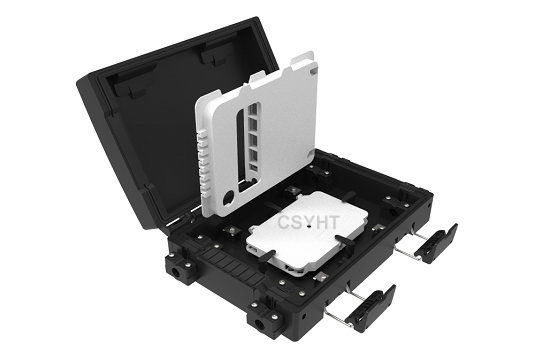

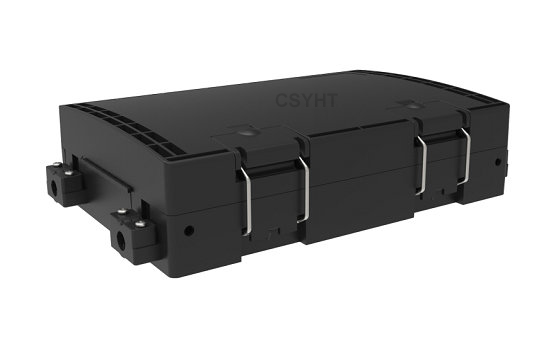

OTB-P040 is a plastic outdoor aerial hanged mounted fiber optic terminal box. It has two layer space. The upper space load a plastic splitter cassette that load PLC steel tube type splitter 1:2, 1:4, 1:8.
The lower space load 1pc fiber optic splice tray OST-050 support max. 24 fibers splicing and connection.
Similar Model: OTB-P038

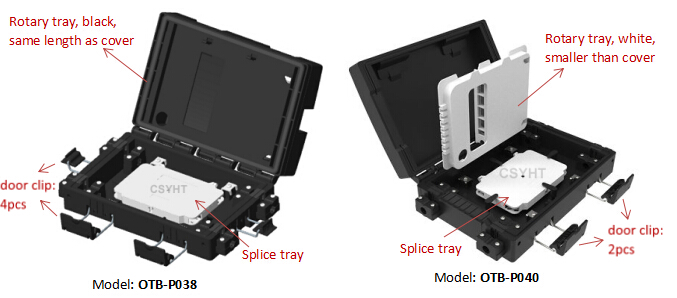

The difference between OTB-P038 and OTB-P040:
