FTTH box BP038
Product specifications
Model: BP038
(Internal model: OTB-P038)
Dimension(mm): 283.2X180.2X80.8
Material: ABS plastic
Capacity: 24 fibers
Splice tray qty: 1 pc OST-050
Color: black
Cable port: 4 entry port 6-8mm & 8 drop cable port 3x2mm
support cable entry without cutting
Application: outdoor aerial hanged
Product details

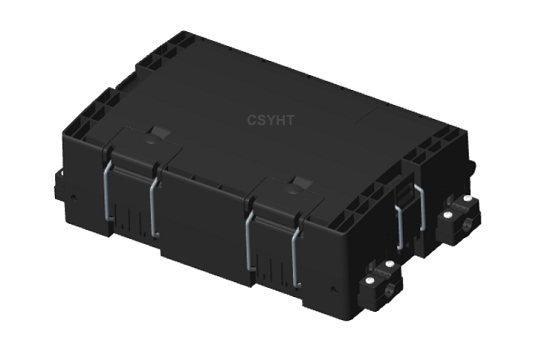

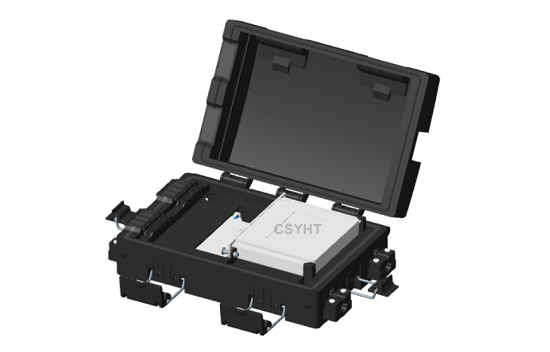

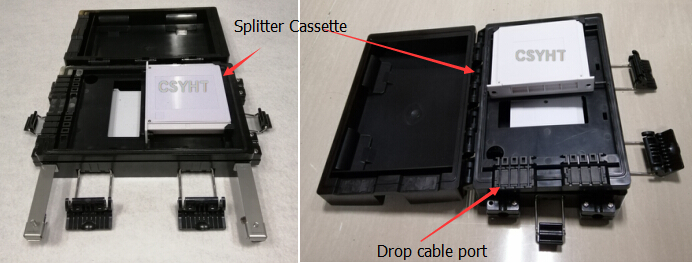

OTB-P038 is a plastic outdoor aerial hanged mounted fiber optic terminal box. It has two layer space. The upper space load a plastic splitter cassette that load PLC steel tube type splitter 1:2, 1:4, 1:8; also it support 8 drop cable output.

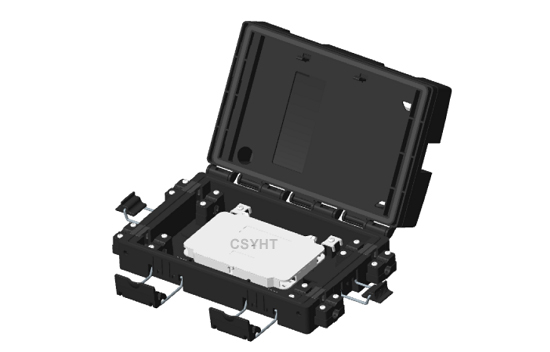

The lower space load 1pc fiber optic splice tray OST-050 support max. 24 fibers splicing and connection. It has 4 cable port 6-8mm.
Similar model: OTB-P040

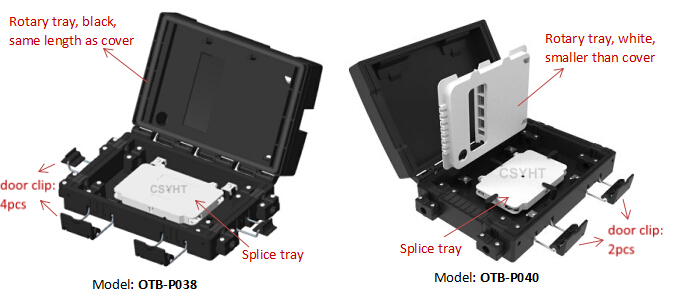

The difference between OTB-P038 and OTB-P040.
