1U 24FO FDB 19inch ODF-RS-205

Product specifications

Model: ODF-RS-205

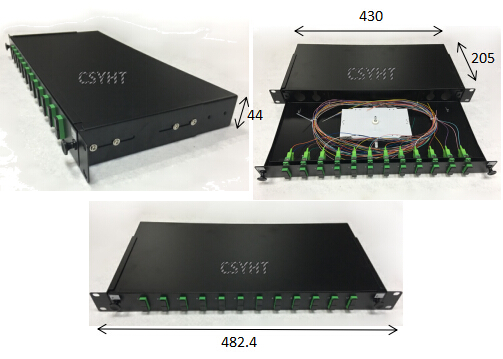

Dimension(mm): 430x205x44
Material: cold roll steel
Adapter port: 12-24pcs SC duplex, SC simplex, LC duplex, FC simplex, ST simplex ...
Capacity: 12, 24, 48 fibers
Max. qty of splice tray: 2pcs OST-011 or OST-035
Max. capacity of splice tray:  12 - 24 fibers
Color: black or grey RAL7035
Application: 19inch rack mounted

Product details

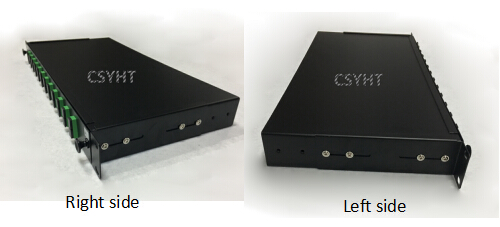

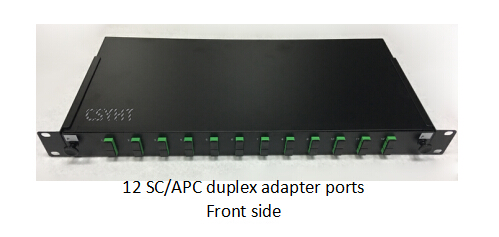

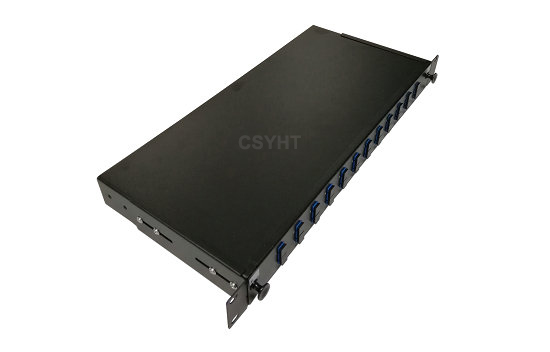

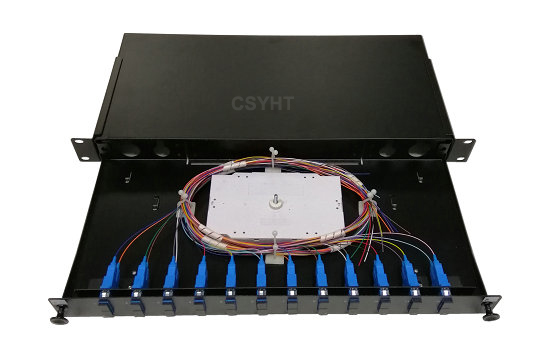

ODF-RS-205 is a 19 inch 1U 24FO FDB optic fiber distribution box with 12 SC duplex adapter port for rack mounted application.

Features:
Cold roll steel,  electrostatic power painting
black color (grey white RAL7035 available)
19 inch rack mounted type

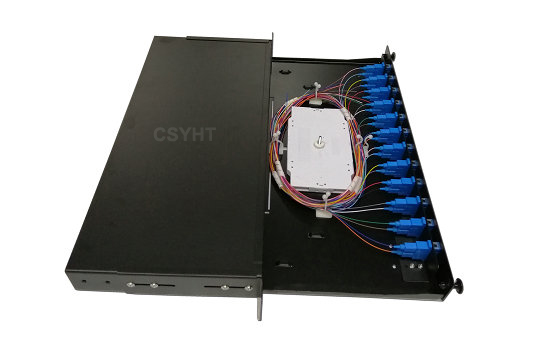

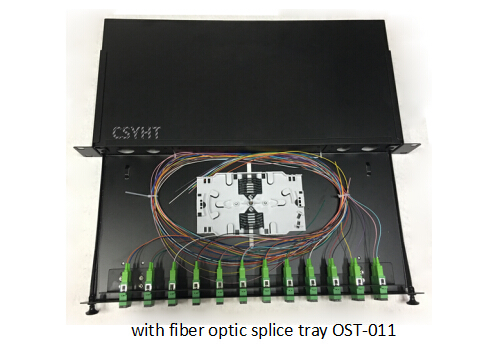

With sliding out tray, inside with max. 2pcs splice tray (Model: OST-011 or OST-035)

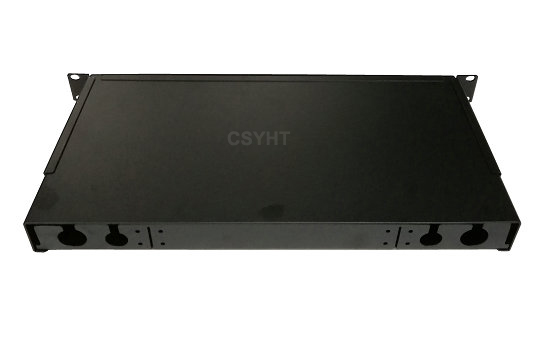

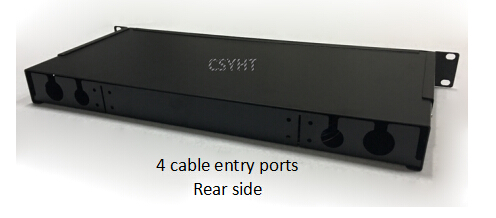

The rear cable ports are suitable for 2pcs M20 and 2pcs M25 cable PG gland
Double layer adapter plate, different adapter port and capacity are customized
Simple structure and easy operation, popular in European market

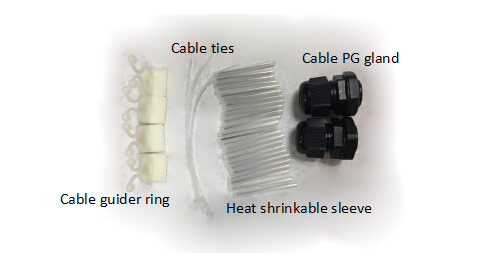

Accessories:
Heat shrinkable protection sleeve 45mm: 24pcs
Cable ties: 4pcs
Cable guider rings: 4pcs
Cable PG gland M20: 2pcs



Specification:

Model Dimension Capacity Adapter port Splice tray
ODF-RS-205 W430*D205*H44 (mm) 12, 24, 48 fibers  12 - 24 SC, LC, FC, ST adapter ports Max. 2pcs splice tray OST-011 or OST-035

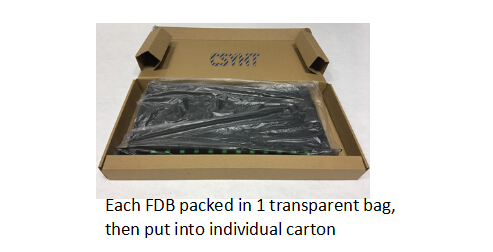

Packing information:
Each in one inner box, 5 sets per outside carton,

each carton 55x30x28cm, about 15kgs per carton
