Mini. 24 fiber splice closure

Product specifications

Model:  CH038
Dimension(mm):  211x207x42.2
Material: ABS+PC plastic
Max. capacity:  24 fibers
Max. qty of splice tray: 1pc  (each tray 12 slots)
Cable port:  2 in 2 out
Cable diameter: 13 & 15mm
Application: outdoor aerial hanged
IP standard: IP65

Product details

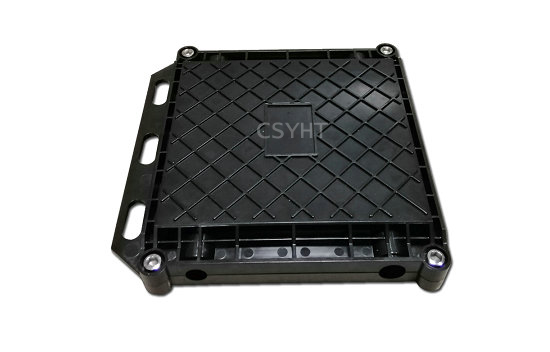

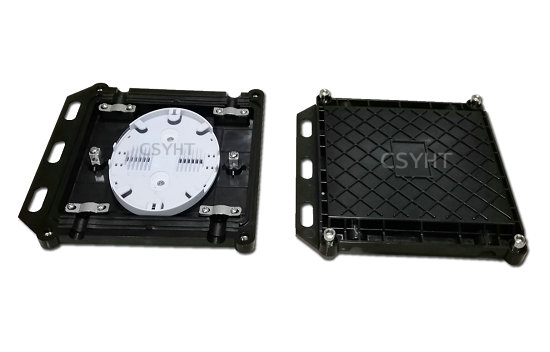

CH038 is a small inline type fiber optic splice closure for fiber splicing and protection. It is made of high-quality ABS+PC material.

Feature:

Smart size for easy operation.Can used as termination box.

Durable High quality ABS+PC material. Black color

IP65 grade,Aerial application

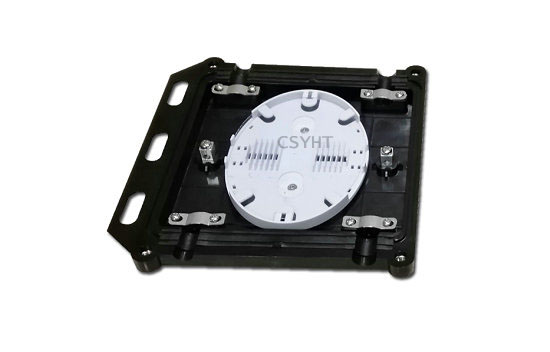

1 Splice tray for Max. 24fiber splicing

2 In & 2 Out cable port,Suitable for 13mm/15mm cable.

Working temperature: -35℃~70℃

Weight: 0.95kgs

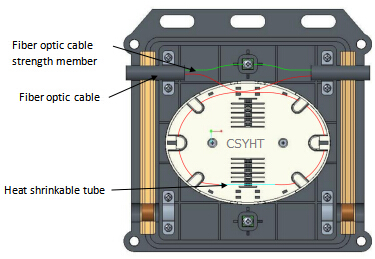

Instruction:
