Dome type 144FO fiber optic closure CV023

Product specifications

Model:  CV023
Dimension(mm):  Φ151.7x549
Material: PP plastic
Max. capacity:  144 fibers
Max. qty of splice tray:  6 pc
Max. capacity of splice tray: 24 fibers
Cable port:  1oval and 4 round port cable port
Heat shrinkable sealing structure
Outdoor aerial hanged, pole mounted, wall mounted etc.

Product details

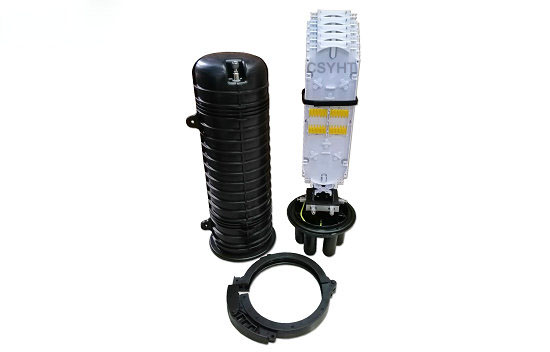

CV023 is a dome type fiber optic splice closure that used for optical fiber cable splicing, joint and protection. It is water proof and dust proof and suitable for outdoor aerial hanged, pole mounted, wall mounted, duct, buried application.

Material: Outside high impact PP+UV closure body, inside ABS splice tray
Sealing structure: Heat shrinkable sealing
IP standard: IP68 waterproof and dust proof, with pressure valve.

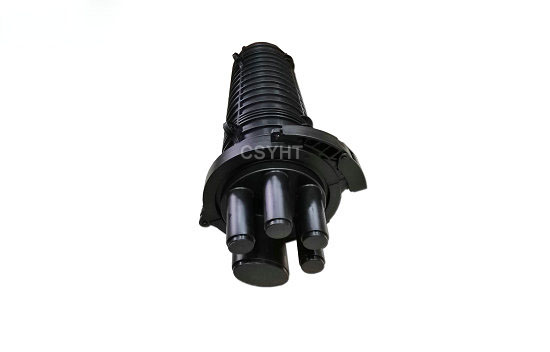

Cable port: 1 oval cable port 69*40mm and 4 round cable port Φ25mm
Splice tray qty: Max. 6pcs OST-016 splice trays,
each tray 24 fibers splicing.
Capacity: Max. 144 fibers
Electrical performance: with grounding device
