16 fiber FTTH BOX BP023
Product specifications
Model: BP023
(Internal model: OTB-P023)
Dimension(mm): 232X385.5X130.5
Material: ABS plastic
Capacity: 36fibers
Adapter port: 18pcs SC simplex
Can load 1pc PLC 1:16 and 2pcs PLC 1:8 steel tube type splitter
Color: black or white
Cable port: 4 entry port & 16 drop cable port
Application: outdoor wall mounted or pole mounted
Product details

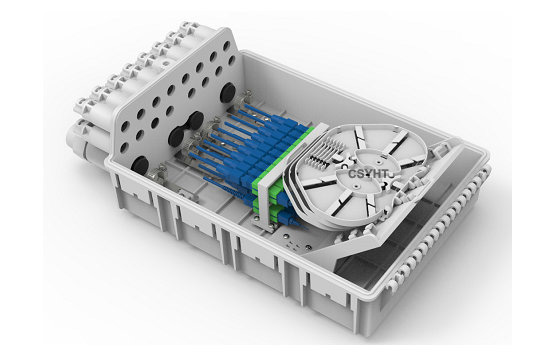

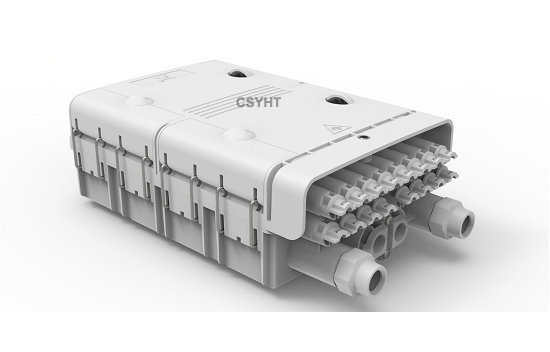

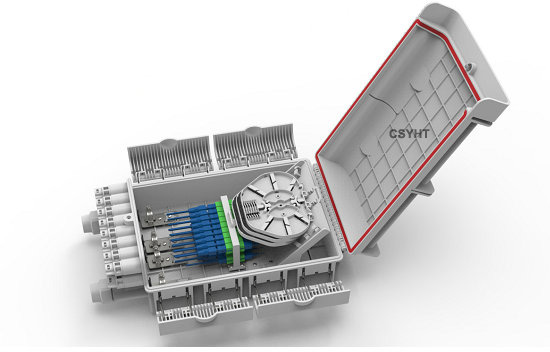

OTB-P023 is a fiber optic terminal box that suitable for optical fiber splicing, distribution and protection. It is reasonable design for fiber arrangement, and for outdoor wall mounted and pole mounted application.
