96 fiber optic splice closure 2 in 2 out CV021

Product specifications

Model:  CV021
Dimension(mm):  Φ177x500
Material: PP plastic
Max. capacity:  96 fibers
Max. qty of splice tray:  4 pc
Max. capacity of splice tray: 24 fibers
Cable port:  4 round port cable port
Mechanical sealing structure
Outdoor aerial hanged, pole mounted, wall mounted etc.

Product details

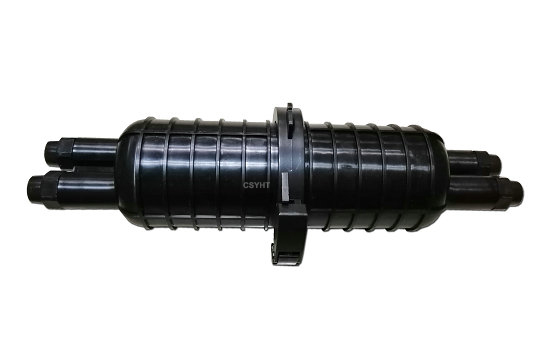

CV021 is a fiber optic splice closure that used for optical fiber cable splicing, joint and protection. It is water proof and dust proof and suitable for outdoor aerial hanged, pole mounted, wall mounted, duct, buried application. It is special design, two domes body, easy for installation and maintenance.


Features:

Material: Outside PP+UV closure body, inside ABS splice tray

Sealing structure: Mechanical sealing

IP standard: IP68 waterproof and dust proof

Cable port: 4 cable ports (2 in 2 out) suitable for Φ11mm & Φ18mm cable entry or exit.

Splice tray qty: Max. 4pcs OST-005B-S splice trays, black color,

each tray 12 slots for max. 24 fibers splicing.

Capacity: Max. 96 fibers

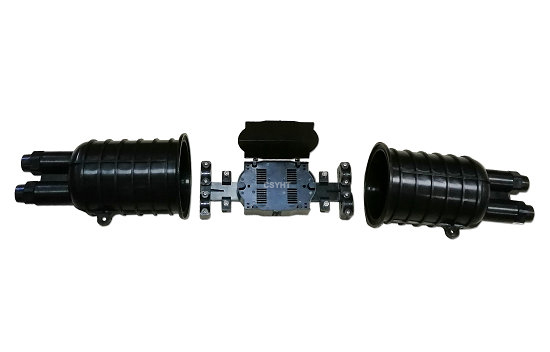

Two domes design, very easy for installation and maintenance.



Specification:

Model

Dimension

Material

Splice tray

Max. capacity

Cable port

Structure

CV021

Ф177x500mm

PP

4 PCS

96 FO

4 port

Mechanical sealing
