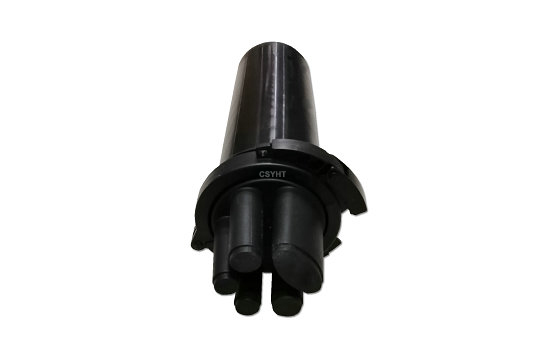

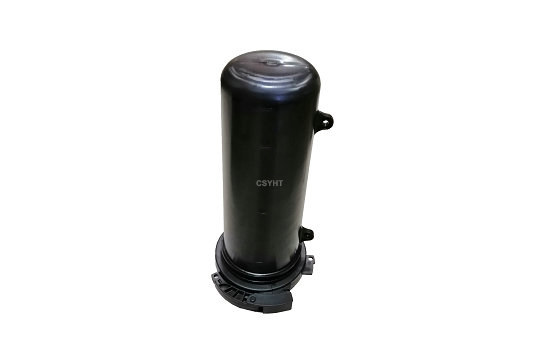

CV019A is a fiber optic joint closure that used for optical fiber cable splicing, joint and protection. It is water proof and dust proof and suitable for outdoor aerial hanged, pole mounted, wall mounted, duct, buried application. Except its dome surface is smooth, other specifications are same as CV019.

Features:

Material: Outside PP closure body, inside ABS splice tray

Sealing structure: Heat shrinkable sealing

IP standard: IP68

Cable port: 1 oval port 24.5*50mm + 4 round ports (2pcs Ф20mm & 2pcs Ф16mm)

Capacity: Max. 48 fibers

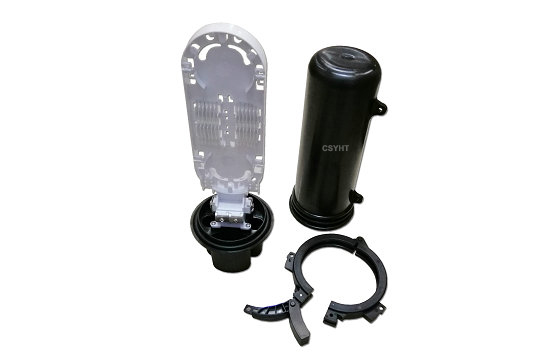

Splice tray: only 1pc, two sides are same design, each side 12 slots for max. 24 fibers splicing.

Simplified design, very easy for installation and maintance.

Specification:
