48fo dome type fiber optic splice closure CV019
Product specifications
Model: CV019
Dimension(mm): Φ139.8x349.1
Material: PP plastic
Max. capacity: 48 fibers
Max. qty of splice tray: 1 pc
Max. capacity of splice tray: 48 fibers
Cable port: 1 oval port and 4 round port cable port
Heat shrinkable sealing structure
Outdoor aerial hanged, pole mounted, wall mounted etc.
Product details

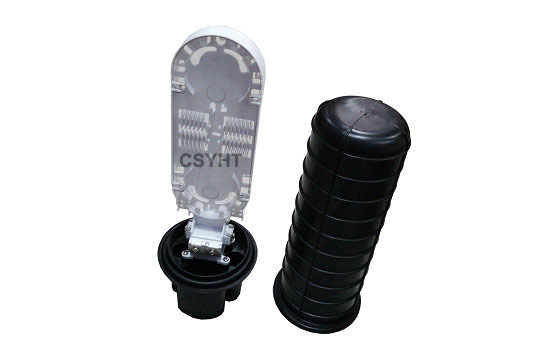

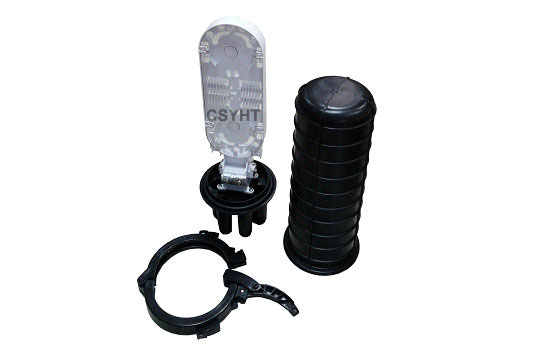

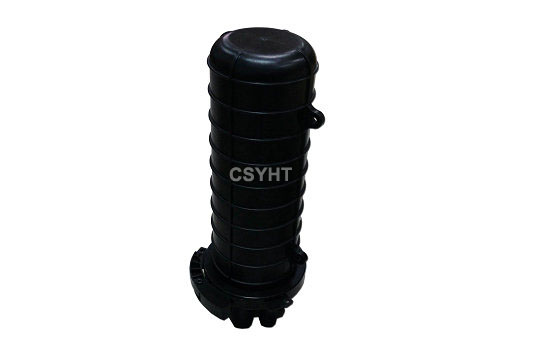

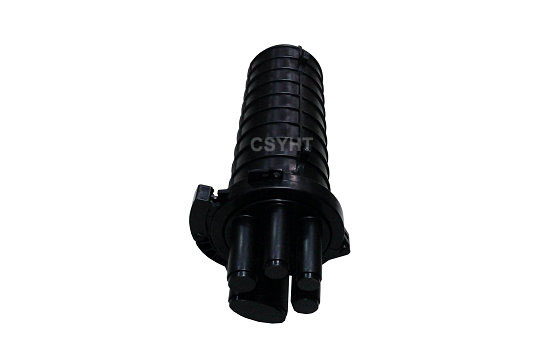

48fo dome type fiber optic splice closure CV019
Description:
Fiber optic splice closure CV019 is an equipment that used for optical fiber cable splicing, joint and protection. It is water proof and dust proof and suitable for outdoor aerial hanged, pole mounted, wall mounted, duct, buried application.
Features:
Material: Outside PP closure body, inside ABS splice tray
Sealing structure: Heat shrinkable sealing
IP standard: IP68
Cable port: 1 oval port 24.5*50mm + 4 round ports (2pcs Ф20mm & 2pcs Ф16mm)
Capacity: Max. 48 fibers
Splice tray: only 1pc, two sides are same design, each side 12 slots for max. 24 fibers splicing.
Simplified design, very easy for installation and maintance.
Specification:
| Model | Dimension | Material | Splice tray | Capacity | Cable port | Application |
| CV019 |
Ф139.8x349.1mm |
PP plastic | 1 pc | Max. 48 fibers | 1 oval port and 4 round port |
Outdoor aerial hanged, pole mounted, heat shrinkable sealing |
