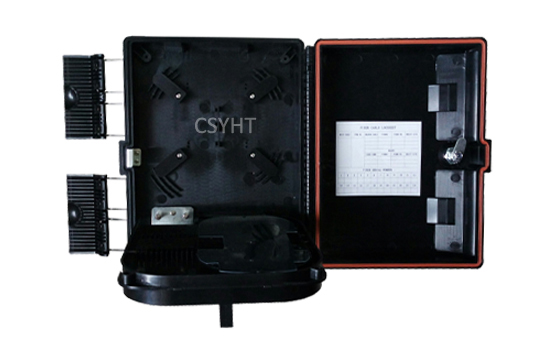

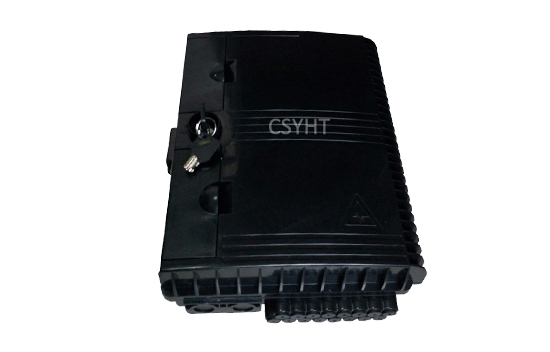

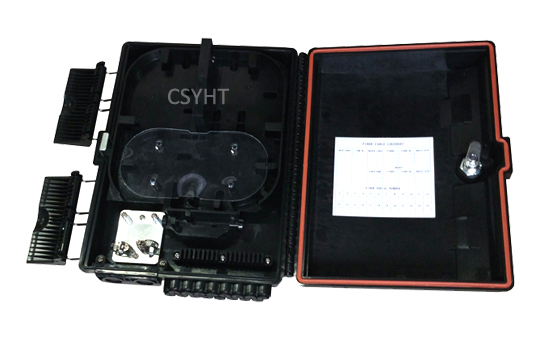

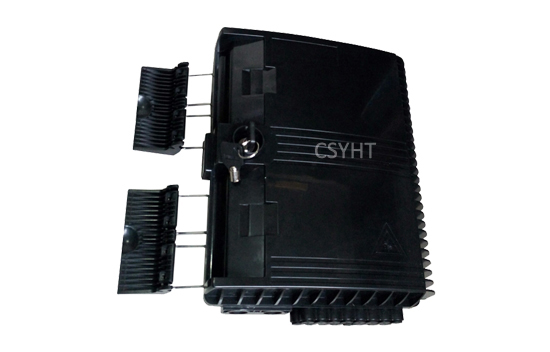

16 core fiber optic terminal box B0216D2
Product specifications
Model: B0216D2
(Internal model: OTB-0216-D2)
Dimension(mm): 304.1x236.5x104.3
Material: ABS plastic
Adapter port: 16pcs SC simplex
Max. capacity: 16 fibers
Max. qty of splice tray: 1pc
Max. capacity of splice tray: 16 fibers
Color: white
Can load 1pc PLC 1:16 steel tube type splitter
2pcs cable entry ports Φ8mm
16pcs FTTH drop cable ports 3*2mm with cable fixing accessory
With cable guider inside of box bottom
Application: outdoor wall mounted, pole mounted
Product details
Fiber optic terminal box is available for the distribution and terminal connection of various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cords or pigtails are connected.
