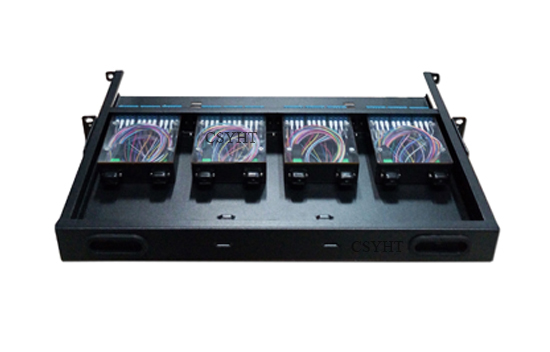

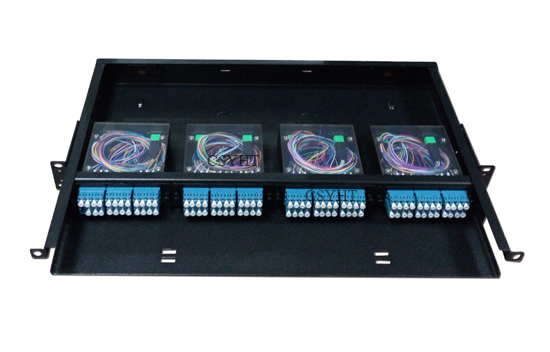

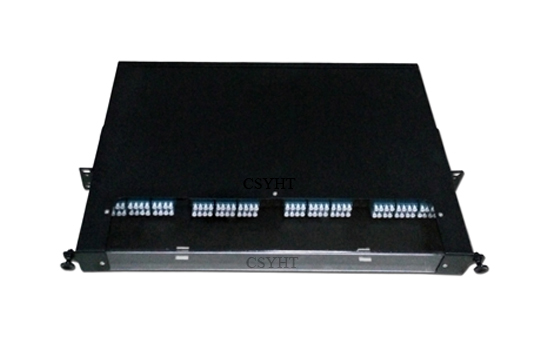

MPO 96 fixed fiber optic patch panel AHODF1U96CA
Product specifications
Model: AHODF1U96CA
(Internal model: HODF-1U-96C-A)
Dimension(mm): 482x300x44.3
Material: Cold roll steel; PC material front transparent cover
Max. capacity: 96 fibers
Load 4pcs MPO cassettes, each MPO cassette 24 fibers
Color: black
Fixed type, with PC material front transparent cover, convenient for observation and maintenance.
Application: 19inch rack mounted
Product details
Made by cold roll steel, electrostatic powder spraying.
Fixed type, with PC material front transparent cover, convenient for observation and maintenance.
Its cover is easy to open and close by using button.
Back side with 2 oval port 22*60mm for cable entry.
Load max. 4pcs MTP/MPO cassette (Model: MB-M015).
Each MTP/MPO cassette can load 6pcs LC quad adapter & 2pcs MTP/MPO adapter, max. 24fibers.
The MTP/MPO cassette with PC material transparent cover, easy to observation and maintenance.
