Horizontal splice closure CH006C

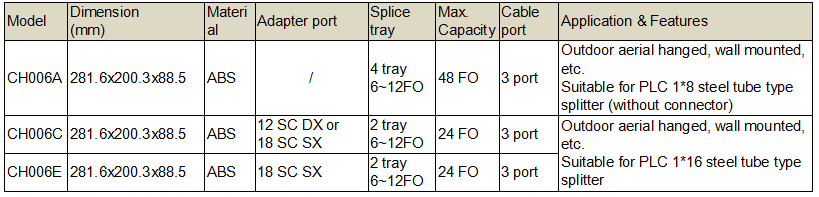

Product specifications

Model:  CH006C
Dimension(mm):  281.6x200.3x88.5
Material: ABS plastic
Max. capacity:  24 fibers
Max. qty of splice tray: 2pcs
Max. capacity of splice tray: 12 fibers
Cable port:  3 port
Adapter port: 12pcs SC duplex or 18pcs SC simplex
Can load 1pc PLC 1:16 steel tube type splitter
Application: outdoor aerial hanged, wall mounted, pole mounted

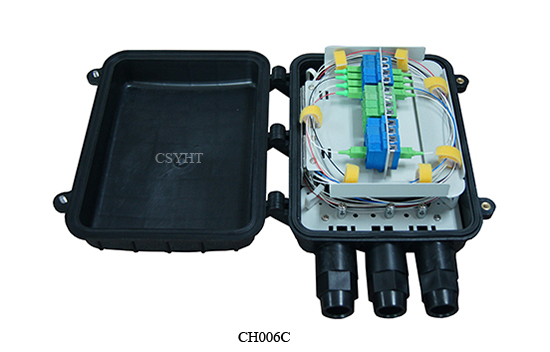

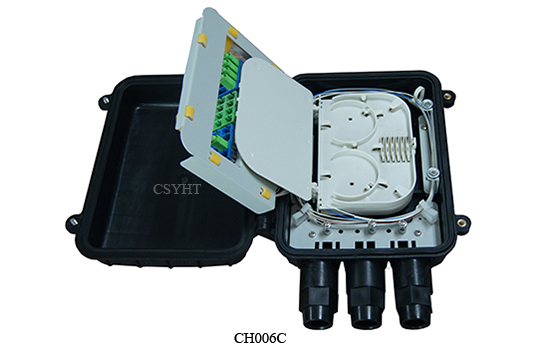

Product details

Fiber optic splice closure is used for fiber splicing, connection in optical network projects.

Order information:
