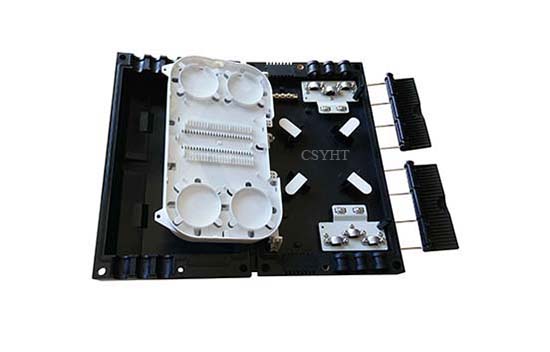

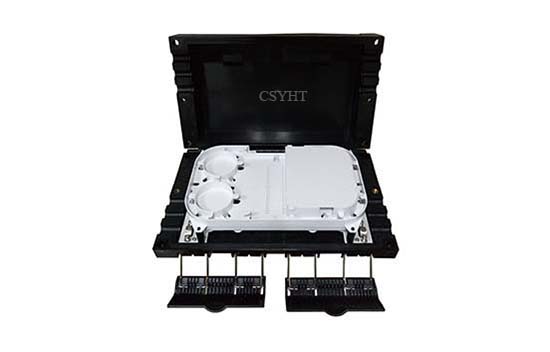

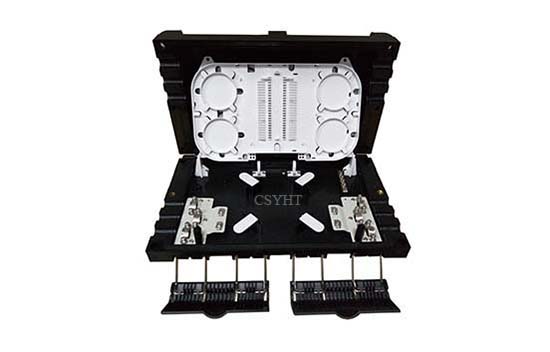

Horizontal splice closure CH017

Product specifications

Model:  CH017
Dimension(mm):  360x215x80
Material: ABS plastic
Max. capacity:  24 fibers
Max. qty of splice tray: 1pc
Max. capacity of splice tray: 24 fibers
Cable port:  6 round port + 16 drop cable port
Max. 9pcs SC simplex adapter port
Can load 1pc PLC 1:8 or 1:16 steel tube type splitter
Application: outdoor aerial hanged, wall mounted

Product details

Fiber optic splice closure is used for fiber splicing, connection in optical network projects.
