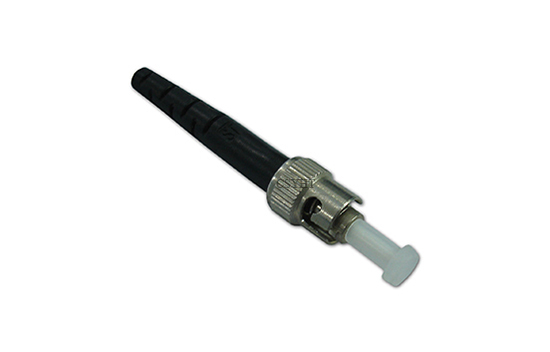

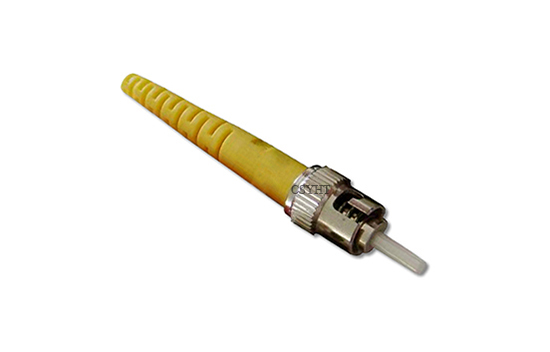

ST fiber optic connector

Product specifications

Product: ST fiber optic connector
Insertion loss: ≤0.2dB
Return loss: ≥50dB(UPC); ≥60dB(APC)
Durability: >1000
Exchangeability: ≤0.2dB
Cable diameter: 0.9mm, 2.0mm, 3.0mm

Product details

Optical fiber connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass.

Low insertion loss
High return loss
Good repeatability and stability
Good temperature stability
Excellent mechanical endurance

Optical fiber communication systems
Fiber access network
Fiber optic data transmission
CATV, LAN  etc.
