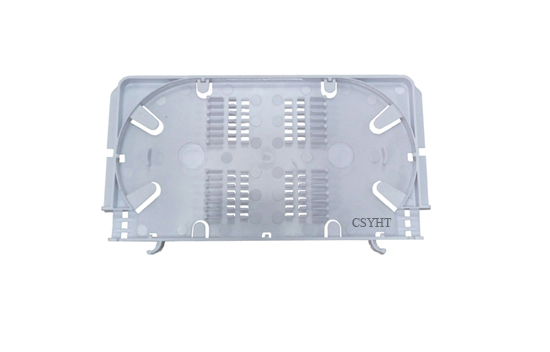

Splice tray R030

Product specifications

Model: R030
(Internal model: OST-030W)
Dimension(mm): 172x88x10.7
Material: ABS plastic
Max. capacity:  12~24 fibers
Color:  white

Product details

Fiber optic splice tray is a box used to protect the bare fiber after fusion, also have function to accept a little redundant bare fiber, it mainly used to install inside fiber optic distribution frame, fiber optic splice closure.

ABS plastic, black or white color available
Reasonable structure, convenient to operate
Bending radius of fiber more than 30mm
With transparent cover

Fiber optic distribution frame
FTTH terminal box
Fiber optic splice closures
Optical cabinet
